The Sony Rialto Mini Extension System delivers full VENICE 2 image quality in an ultra-compact, lightweight form, allowing the sensor to be separated from the camera body for unmatched flexibility in tight spaces, gimbal, vehicle and specialty rig setups.

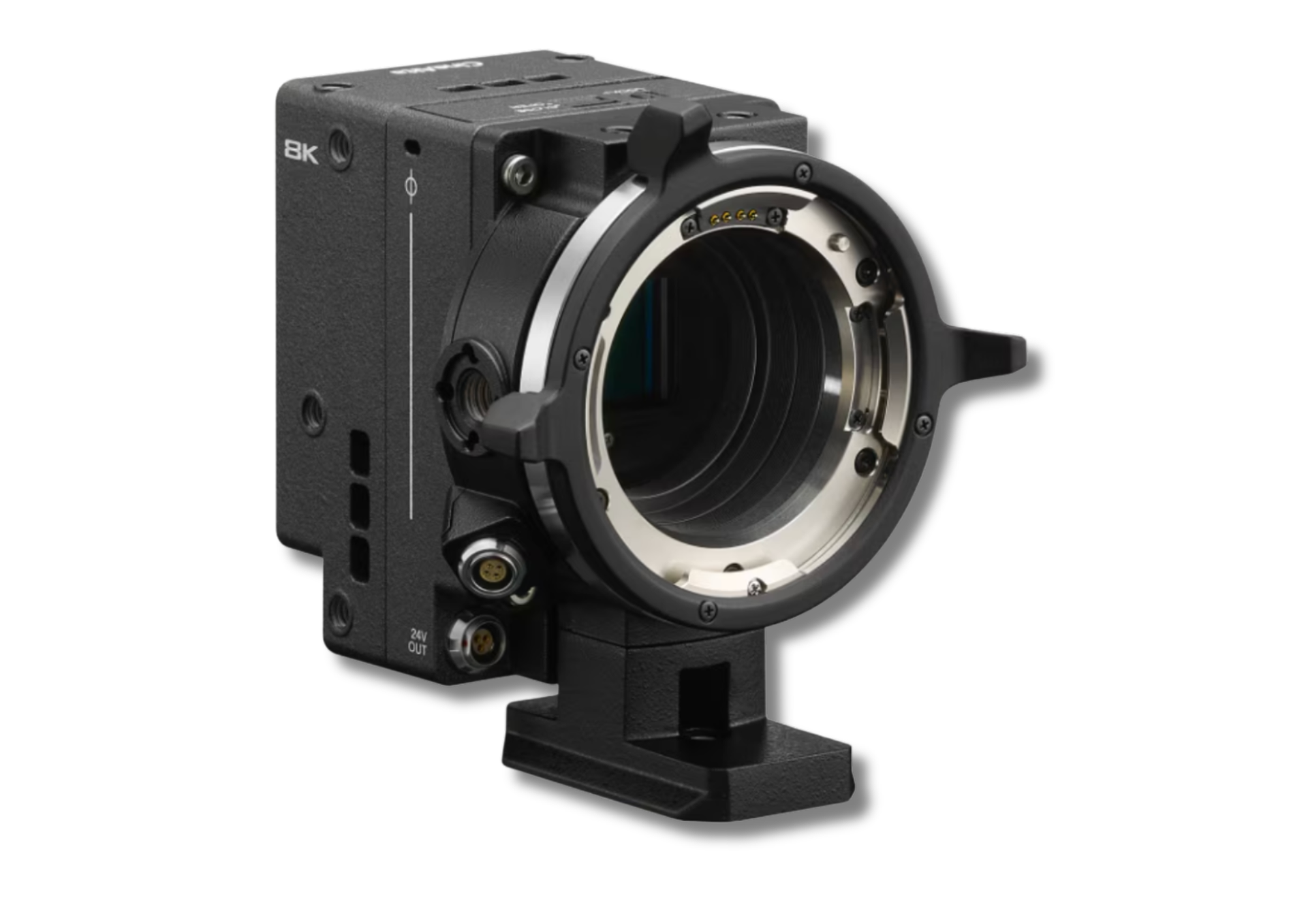

Sony RIALTO MINI Extension System


The Sony Rialto Mini Extension System redefines creative freedom for professional cinematographers working with the VENICE 2. By separating the full-frame 8.6K sensor block from the main camera body, Rialto Mini delivers the same legendary VENICE image quality in a dramatically smaller, lighter and more nimble form factor — ideal for handheld, gimbal, POV, vehicle-mounted and tight-space shooting.

At approximately 70 % smaller than previous extension systems and roughly the size of a smartphone, this compact unit comes complete with a built-in drop-in ND filter set, detachable flexible cable, and interchangeable E-mount/PL support with Cooke /i metadata capability. Its lightweight design and modular connectivity make it perfect for immersive production workflows

  • Key Features

    • 8.6K Full-Frame CMOS Sensor: Same high-end sensor as the VENICE 2 8K for exceptional cinematic image quality. Compatible with both VENICE 2 8K and, with firmware v4.0, VENICE 2 6K bodies.
    • Ultra-Compact & Lightweight Head Unit: Approximately 70 % smaller than previous extension systems, ideal for handheld, gimbal, tight-space and specialty rig setups.
    • Drop-In ND Filter System: Includes a set of 9 ND filters(clear to 2.4) for precise exposure control.
    • Detachable Flexible Cable: Comes standard with a 4.5 m cable(also available in optional 12 m), thinner and more manageable for rigging in confined environments.
    • Lens Mount Flexibility: Supports Sony E-mount and ARRI PL via included adapter, expanding lens compatibility.

  • Technical Specifications

    Model: CBK-3621XS

    Compatibility:Sony VENICE 2 (8K & 6K bodies)

    Purpose:Remote sensor extension system for compact, lightweight and specialty camera configurations

    Sensor Type:Full-Frame CMOS

    Sensor Resolution:8.6K (same sensor as VENICE 2 8K)

    Image Quality:Identical performance to VENICE 2 main body

    Lens Mount: Native Mount:** Sony E-mount , PL Support: ARRI PL mount via included adapter

    Lens Metadata:Cooke /i support via PL mount

    Mount Swapping: Tool-based, user-interchangeable

    ND Filter System-Type: Integrated drop-in ND filter system

    Included Filters:

    Clear

    ND 0.3

    ND 0.6

    ND 0.9

    ND 1.2

    ND 1.5

    ND 1.8

    ND 2.1

    ND 2.4

    ND Recognition: Automatic detection by VENICE 2 body

    Connectivity & Cabling :

    Standard Cable Length:** 4.5 m (14.8 ft)

    Optional Cable Length:** 12 m (39.4 ft)

    Cable Type:Detachable, flexible extension cable

    Cable Diameter: Approx. 7.6 mm

    Controls & Metadata

    Assignable Buttons:2 × user-assignable buttons on head unit

    Gyro Sensor: Built-in gyro for tilt and roll metadata

    Accessory Connector: 3-pin Fischer (start/stop, control, accessories)

    Dimensions:(W × H × D):** Approx. 63.9 × 103.2 × 60.2 mm

    Weight: Approx. 0.54 kg (E-mount) - Approx. 1.05 kg (with PL mount adapter)

    Mounting & Rigging: Mounting Points = 15 threaded mounting holes

    Stereo / VR Support: Dual units can be mounted side-by-side with approx. 64 mm optical centre spacing

  • What's Included

    Reach out to our rental team for comprehensive kit details
