The Pixboom Spark is a compact Super 35mm high-speed cinema camera that records continuous 4K RAW video at up to 1,000 frames per second (fps)

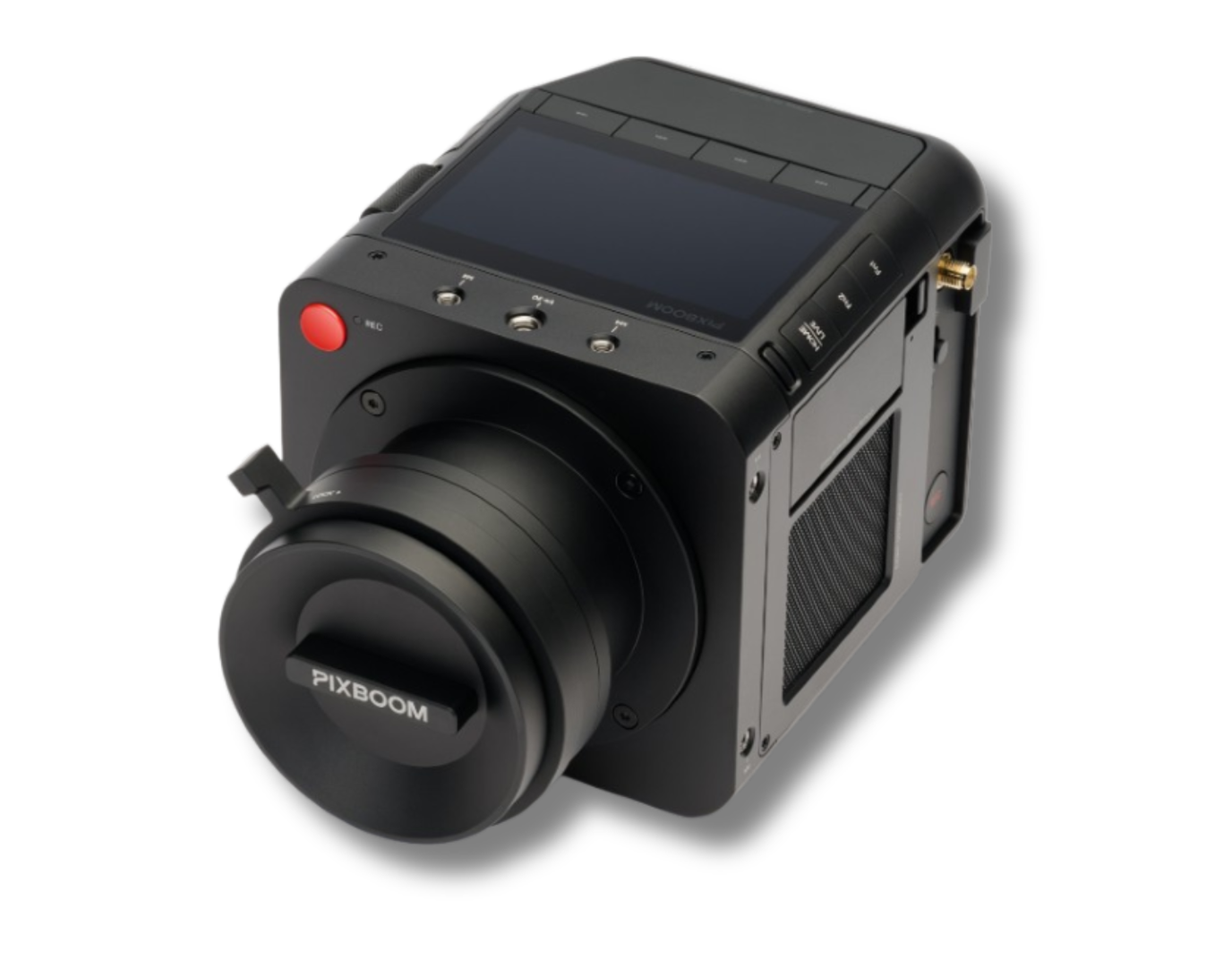

PIXBOOM SPARK High Speed CAMERA


Introducing the Pixboom Spark—a game-changing, compact Super 35mm cinema camera engineered for elite high-speed filmmaking. Built into a lightweight, gimbal-ready aluminum unibody, it shatters traditional RAM limits by streaming continuous 4K RAW footage at up to 1,000 fps directly to internal NVMe SSD storage. Featuring a global shutter sensor to eliminate rolling shutter distortion, dual native ISO for exceptional low-light performance, and an intuitive touchscreen OS, the Spark delivers uncompromising production-grade slow motion in a highly portable form factor.


  • Key Features


    • Super 35mm Global Shutter Sensor: Eliminates motion artifacts and rolling shutter skew completely.

    • Continuous High-Speed Recording: Captures 4K RAW at up to 1,000 fps and 2K at up to 1,800 fps.

    • Dual Native ISO: Features native 400 and 1,600 ISO ratings for improved low-light performance.

    • Internal NVMe Storage: Streams footage continuously to high-speed NVMe SSDs, removing traditional RAM buffer limits.

    • 10-Bit RAW Capture: Offers high-fidelity color grading flexibility directly from the sensor.

    • Compact Aluminum Unibody: Weighs under 1.1 kg, making it ideal for gimbals, drones, and tight rigs.

    • Integrated Touchscreen: Features a 3.5-inch high-resolution display running Pixboom OS.

    • Wireless Control: Built-in Wi-Fi enables remote monitoring and setting adjustments via mobile devices.


  • Technical Specifications

    Sensor & Imaging

    • Sensor Type: 14.2MP Super 35mm CMOS, Back-Side Illuminated (BSI)

    • Shutter Type: Global Shutter

    • Dynamic Range: 13 stops

    • Dual Native ISO: 400 and 1600 (featuring intermediate analog gain settings at 640, 800, and 1250)

    Frame Rates & Resolutions

    • 4.6K Open Gate (3:2): 4608 × 3072 up to 670 fps

    • 4.6K (16:9): 4608 × 2592 up to 781 fps

    • 4K (16:9): 4096 × 2304 up to 887 fps (Scales up to 1,000 fps at varied aspect ratios like 2.37:1)

    • 2K (16:9): 2048 × 1152 up to 1724 fps (Scales up to 2,182 fps at 2.37:1)

    • Custom Region of Interest (ROI): Up to 15,000–20,000 fps at reduced pixel resolutions

    Recording & Storage

    • Video Codec: Pixboom RAW (10-bit / 12-bit visually lossless linear RAW)

    • Recording Time: Unlimited continuous recording (determined entirely by media capacity; no internal RAM buffer limitations)

    • Pre-Record Buffer: Up to 2.7 seconds at max frame rate in Open Gate

    • Media Type: Removable Pixboom Pro Card (2.5TB capacity, 20Gbps USB 3.2 Gen 2×2 export)

    Connectivity & Power

    • Video Output: 1x 12G-SDI, 1x HDMI 2.0

    • Data & Sync: 1x USB-C (supports direct offloads at up to 10 GB/s), 1x 9-pin EXT port (Genlock, Timecode, sync, GPIO)

    • Wireless: Wi-Fi remote control and live preview

    • Lens Mounts: Interchangeable electronic mount system supporting E, EF, or PL mount adapters

    • Power Input: Native V-Lock battery interface or 15–24V DC input

    Physical Specifications

    • Display: Integrated 3.5-inch, 6.22 million-dot 16:9 touchscreen with impact-resistant glass

    • Material: All-aluminum alloy unibody

    • Dimensions: 108 × 110 × 130 mm (H × W × L, excluding mount adapter)

    • Weight: Approximately 1.1 kg (body only)

  • What's Included

    Reach out to our rental team for comprehensive kit details
