Includes PL & LPL lens mounts, plus standard lens set (M Mount)

  • 24mm
  • 35mm
  • 50mm
  • 75mm
  • 90mm

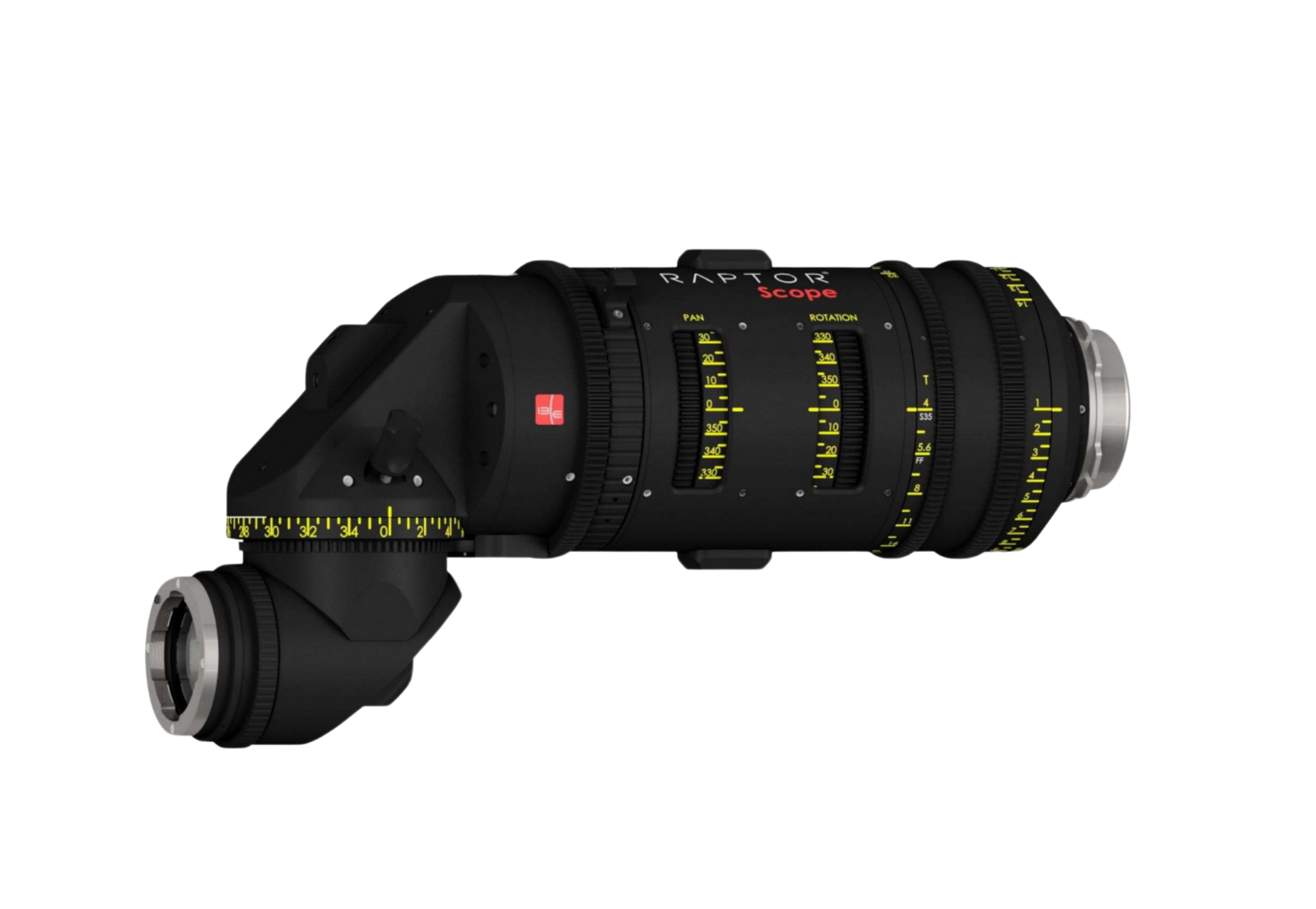

IBE Optics (FF) RAPTOR Scope

Introducing the Raptor Scope, revolutionising your viewing experience. In the field of high-end optics, the Raptor Scope stands out as a remarkable achievement in precision engineering and cutting-edge design. Its high-definition optical system ensures that every scene observed is rendered with remarkable accuracy and vividness in a Full Frame image coverage (44mm).Built to endure the hardest environments, the Raptor Scope is crafted in Germany from premium materials that guarantee durability and reliability.

With its compact design and intuitive controls, this Scope ensures effortless handling and operation. The image rotation compensator while panning the snorkel is the perfect example of this user-friendly optical tool. Also, this feature can be used for 360°rotating images avoiding the spin of the whole camera system. All the functions can be motor driven. With the Raptor Scope, you will be closer to the wonders of world and beyond.

  • Key Features

    • New optical and mechanical design
    • S35 & FF coverage
    • Easy switch between the formats
    • Unlimited Pan, Tilt & Roll moves
    • Image rotation compensator
    • F/4.0 (in S35 mode)
    • Internal Focusing (Constant Lens Length)
    • UMS PL-Mount
    • Extended Color Correction (APO)
    • Robust Mechanical Design

  • Technical Specifications

    Pan – Tilt – Roll - 0.8 Geared 360° (Unlimited)

    Focus – Iris- 0.8 Geared. Near to Camera 180° Focus – 90° Iris rotationRear Attachment 0.8x Booster for image coverage of 35mm Constant length Aperture F/5.6 at FF (44mm) - F/4.0 at S35 (35mm)

    Camera Mount UMS- PL mount

    Optional Rear Mounts- LPL, EF, FZ

    Front Mount Leica - Leica M

    Optional Front Mounts- PL, LPL, EF

    Max. Image Diameter - 44 mm / 1.73''

    Length (Flange to Front)- 32,3 cm / 12.7“ (PL to M version)

    Weight- 4,4 kg / 9,8 lb Support ¼ Tread for standard lens support

    Input lenses (standard set)- 24, 35, 50, 75, 90 M-mount Full Frame

  • What's Included

    Contact SCC for Information
