In doubling the image size, the transmitted light is spread over four times the area, decreasing the brightness by two f-stops. The optical design has been optimized for modern lenses and digital cameras and the maximum input T-stop is 1.9.
Key Features

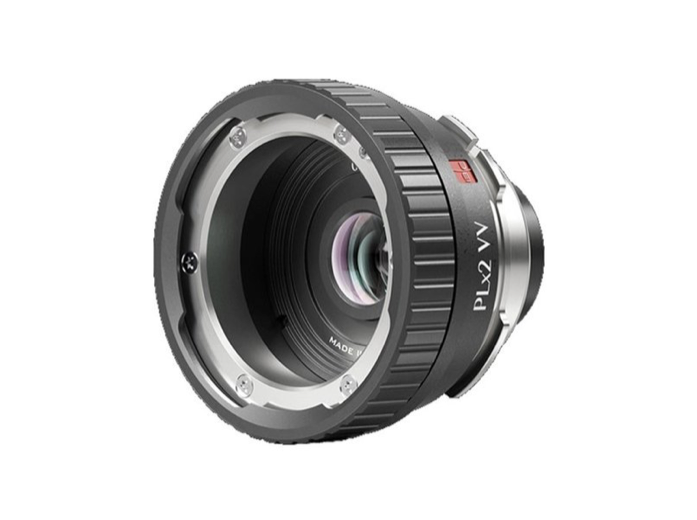

Doubles the focal length of Vista Vision Format PL mount lenses
Compact optical and mechanical design
PLx2 VV is compatible with a wide range of lenses
Technical Specifications
Optical design (lenses/groups)7/5
Max. image diameter (mm)46.4
Magnification x2Max.
Input T-stop 1.9
Light drop (stops)2.0
Lens mountPL Standard
Camera mountPL UMS Mount*
Diameter (mm)78.0
Length (mm) PL to PL34.8
Weight (kg)0.5
What's Included
Reach out to our rental team for comprehensive kit details
