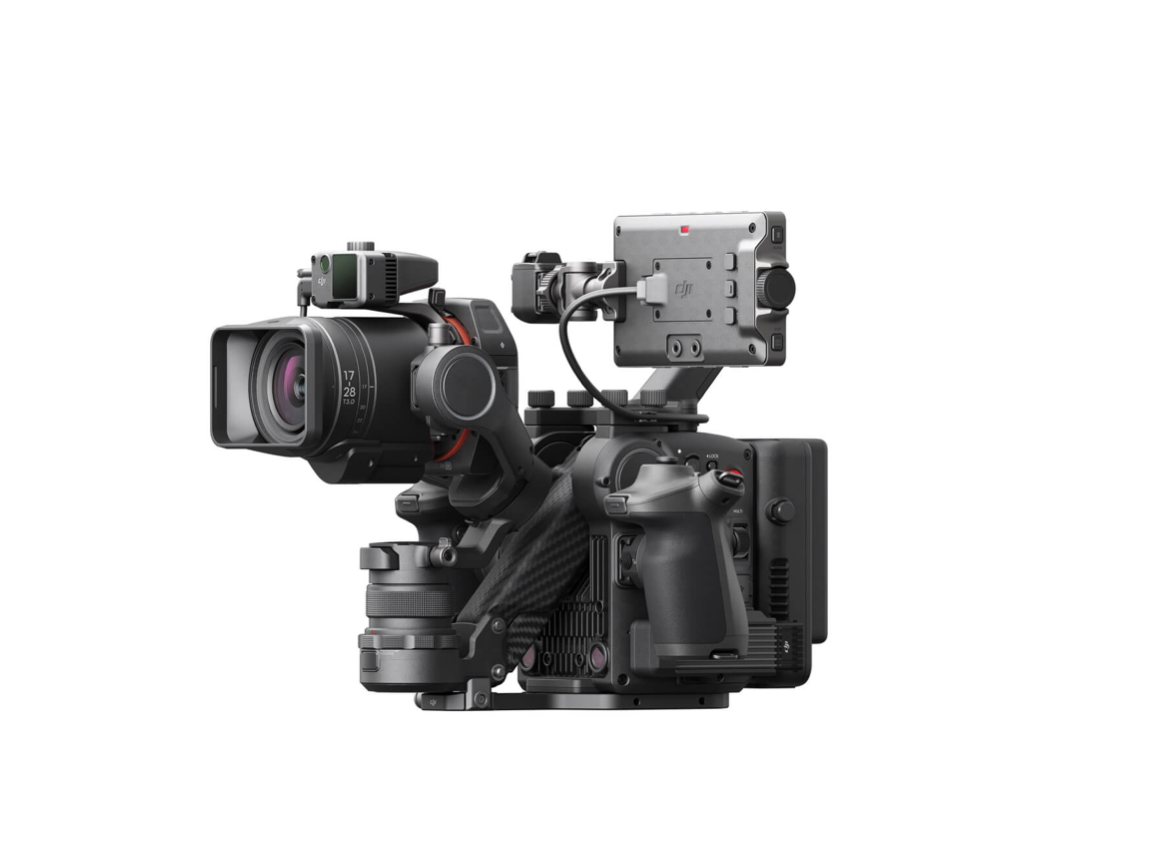

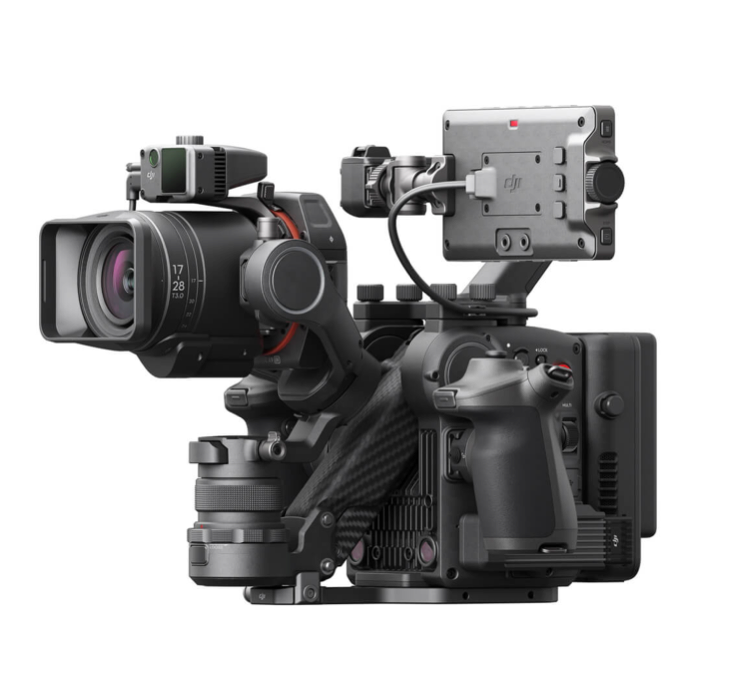

DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting.

Hire DJI Ronin 4D 8K Camera


Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a compact cinema camera. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, [3] delivering multiple options for professional-level creation.

  • Key Features

  • Technical Specifications

    • Main Body Dimensions(length×width×height) :- 235×115×160 mm
    • Overall Dimensions(length×width×height) :- 309×290×277 mm [1]
    • Gimbal Weight:- Approx. 1.04 kg
    • Main Body Weight:- Approx. 1.45 kg
    • Overall Weight:- Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)
    • Max Operating Time:- Approx. 150 minutes [2]
    • Intelligent Features:- ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
    • Storage Temperature:- -20° to 60° C (-4° to 140° F)
    • Operating Temperature:- -10° to 40° C (14° to 104° F)


    • Sensor Size:- 35mm full-frame CMOS image sensor
    • Base Lens Mount:- DX Mount, and support for other mount units
    • Supported Lens Mounts:- DL mount (included), L mount, M mount, E mount (third-party), PL mount (third-party)
    • Dynamic Range:- 14+ stops
    • White Balance:- Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
    • Gamma:- D-Log, Rec.709, HLG
    • EI Range:- X9-8K: EI 200 to EI 6400
    • With Dynamic Range Expansion off: Dual native ISO 320/1600
    • With Dynamic Range Expansion on: Dual native ISO 800/4000
    • X9-6K: EI 200-12800, dual native ISO 800/5000
    • Shutter Speed:- Electronic Rolling Shutter 1/24s-1/8000s
    • ND:-Built-in 9-stop ND filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
    • Focus Control [3]:- Autofocus, Manual Focus, Automated Manual Focus
    • Supported File System :- exFAT
    • Recording Format:- Apple ProRes RAW HQ/Apple ProRes RAW
    • Apple ProRes 4444 XQ
    • Apple ProRes 422 HQ/Apple ProRes 422 LT
    • H.264 (4:2:0 10-bit)
    • Storage Media:- DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD


    • DJI PROSSD 1TB Recording Format:- No restriction on recording format
    • CFexpress 2.0 Type B Recording Format [4]:- ProRes 422 HQ/LT:

    6K: 23.976/24/25/29.97/30fps

    C4K: 23.976/24/25/29.97/30/48/50/

    59.94/60/72/96/100/120fps

    2K: 23.976/24/25/29.97/30/48/50/

    59.94/60/72/96/100/120fps

    H.264:C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

    2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

    • USB-C SSD Recording Format [5]:- ProRes 422 HQ/LT:

    C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps

    2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

    H.264:C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps

    2K: 23.976/24/25/29.97/30/48/50/59.94/60fps


    • Built-in Mic:- Built-in 2-ch stereo
    • Audio Format:- LPCM 2-ch, 24-bit 48kHz

  • What's Included
