32mm T2.1

45mm T2.1

75mm T2.1

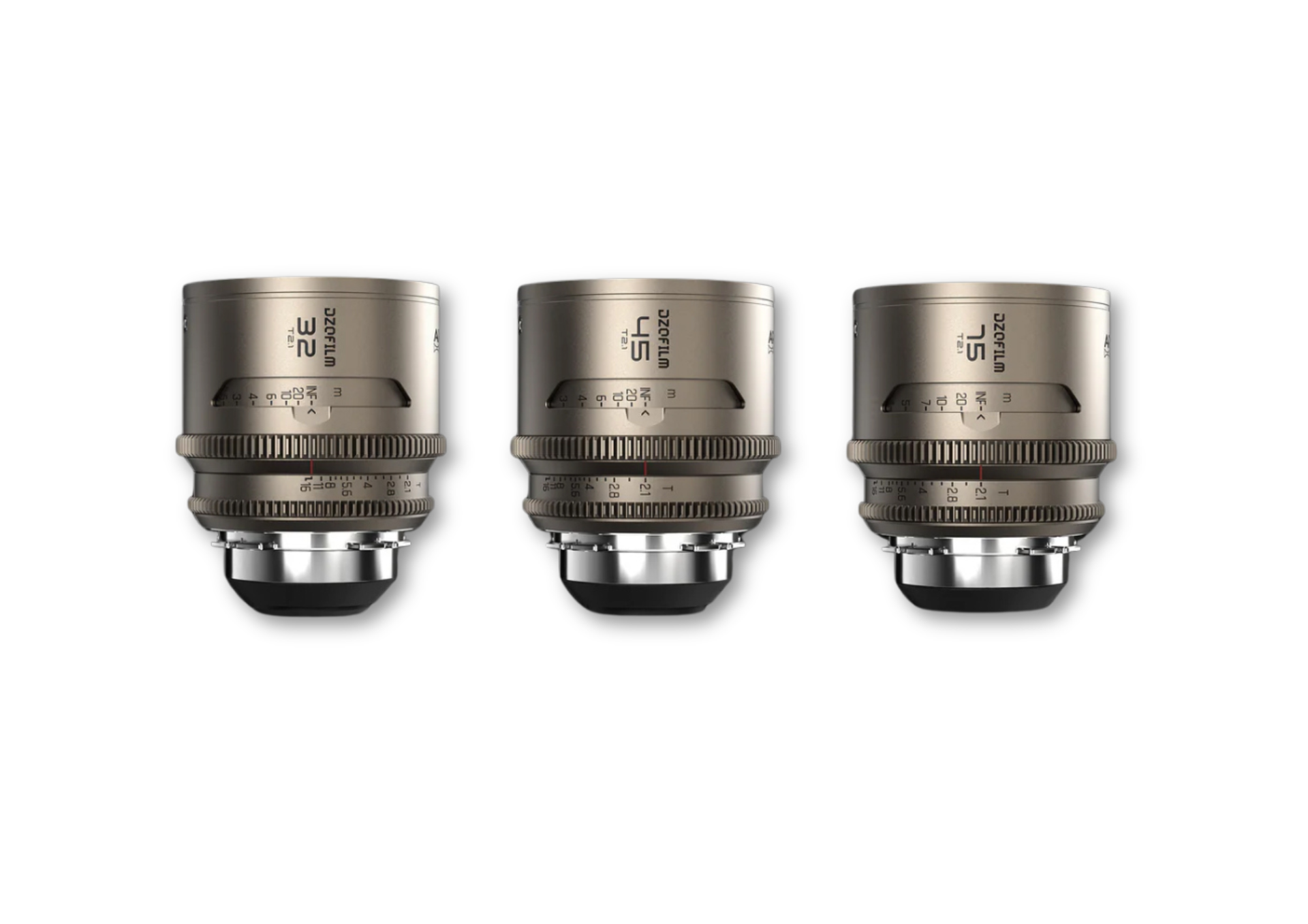

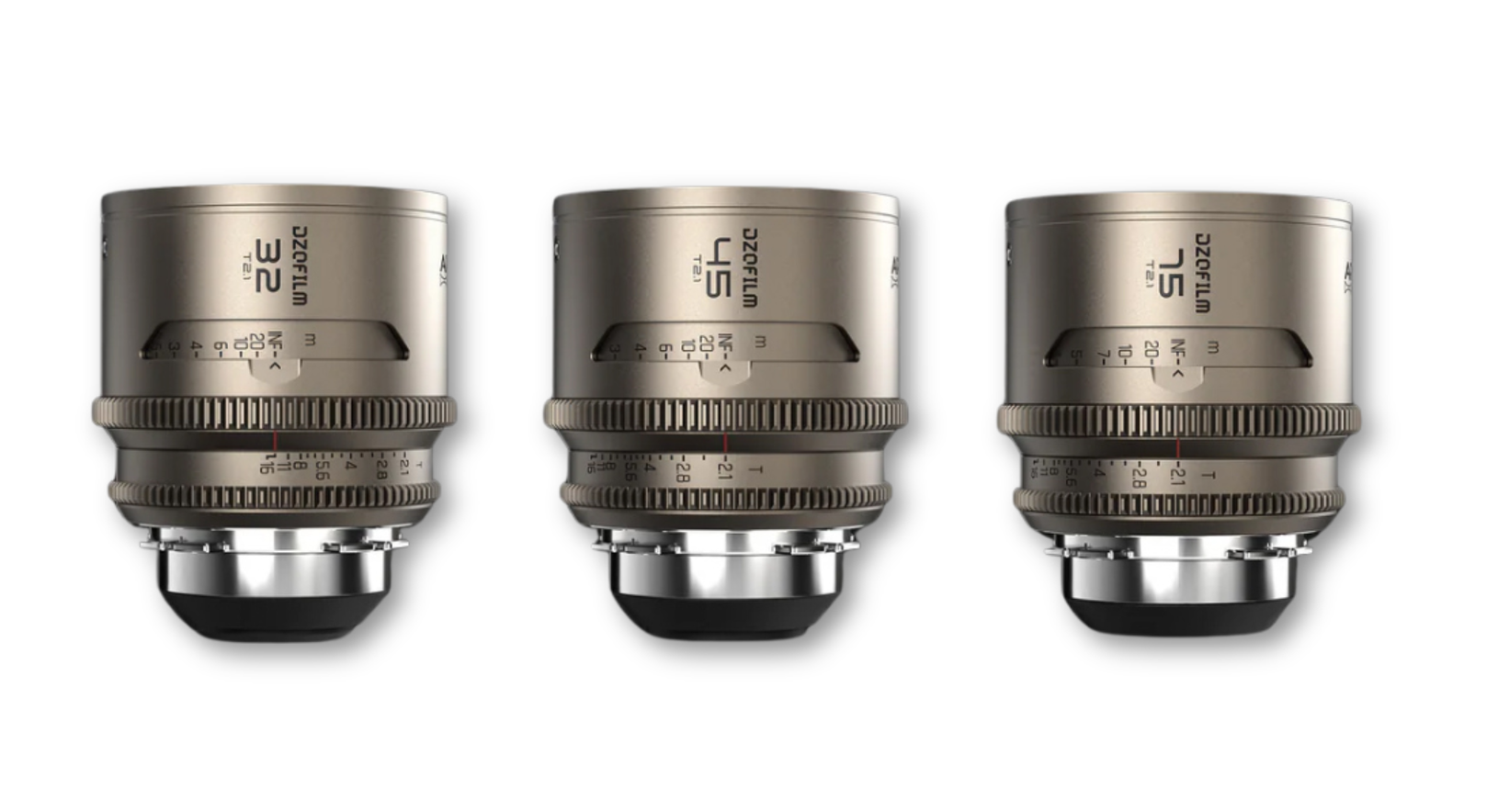

DZO ARCANA 1.5x ANAMORPHIC Prime Lenses

Bring the unmistakable look of anamorphic cinematography to your next production with the DZOFilm Arcana 1.5x Anamorphic Prime lenses. Combining classic anamorphic character with a compact, lightweight design, the Arcana series is engineered for modern cinematographers who demand premium image quality without compromising on mobility.

Designed to cover Full Frame sensors, the Arcana lenses produce beautifully cinematic imagery with a 1.5x anamorphic squeeze, delivering the signature widescreen aesthetic, pleasing oval bokeh, and elegant horizontal flares that have become synonymous with anamorphic filmmaking. Their fast T2.1 aperture offers excellent low-light performance while allowing for shallow depth of field and expressive subject separation.

Despite their cinematic character, the Arcana lenses embrace a modern, practical design. Weighing approximately 700g each with a compact 80mm front diameter, they are perfectly suited to handheld shooting, Steadicam, gimbal systems, drones, and compact cinema camera builds. Consistent dimensions, gear positions, and handling across the range also make lens changes quick and efficient on set.

Optically, the Arcana series delivers impressive sharpness while retaining a natural, organic rendering. Minimal focus breathing, consistent colour reproduction, and smooth focus fall-off ensure beautiful, cinematic images across a wide variety of productions—from feature films and television drama to commercials, music videos and branded content.

  • Key Features

    • 1.5x Anamorphic Squeeze – Delivers the classic widescreen anamorphic look while being easy to work with in post-production.
    • Full Frame Coverage – Covers full frame sensors
    • Fast T2.1 Aperture – Excellent low-light performance with shallow depth of field.
    • Compact & Lightweight Design – Weighing around 1.2–1.3 kg, they're well suited to handheld, Steadicam, gimbal, crane, and drone work.
    • Beautiful Oval Bokeh – Produces the classic anamorphic out-of-focus highlights with a soft, cinematic feel.
    • Natural Horizontal Flares – Characterful blue-toned anamorphic flares that enhance the cinematic aesthetic without being overpowering.
    • Minimal Focus Breathing – Maintains a consistent image size while pulling focus.
    • Close Focus Performance – Allows filmmakers to get closer to subjects without sacrificing the anamorphic look.
    • Premium Optical Design – High sharpness with smooth contrast and a pleasing balance of modern clarity and cinematic character.

  • Technical Specifications

    Maximum Aperture: T2.1

    Aperture Range: T2.1 – T16

    Anamorphic Squeeze: 1.5x

    Image Circle: Ø43.3mm (Full Frame Coverage)

    Lens Mount: PL Mount

    Focus Rotation: 270°

    Iris Blades: 14

    Front Diameter: 80mm

    Filter Thread: 77mm

    Focus & Iris Gear Pitch: 0.8 MOD

    Lens Length: 80mm

    Construction: Aluminium Alloy

    Optical Design:

    • 32mm – 15 Elements in 13 Groups
    • 45mm – 15 Elements in 13 Groups
    • 75mm – 15 Elements in 11 Groups

    Minimum Focus Distance

    • 32mm: 0.48m (1'7")
    • 45mm: 0.53m (1'9")
    • 75mm: 0.78m (2'7")

    Weight

    • 32mm: 709g
    • 45mm: 695g
    • 75mm: 709g

  • What's Included

    Reach out to our rental team for comprehensive kit details.
